TBS Engines The Block Shop

Precision Billet 118mm Turbo Kit

Full Turbo Kit for a Dodge Dart

Built By Matt Blasco

$13,000 + GST

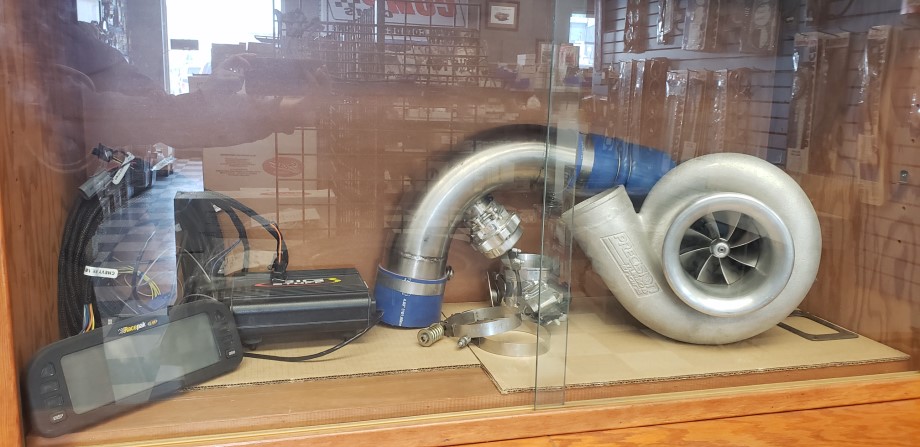

Turbo, Intercooler, ECU GST Computer, Headers, Full GST Exhaust, Injectors

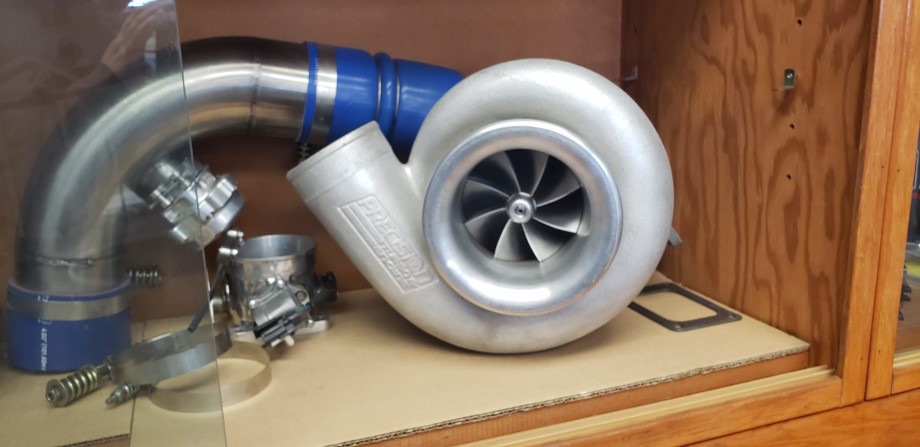

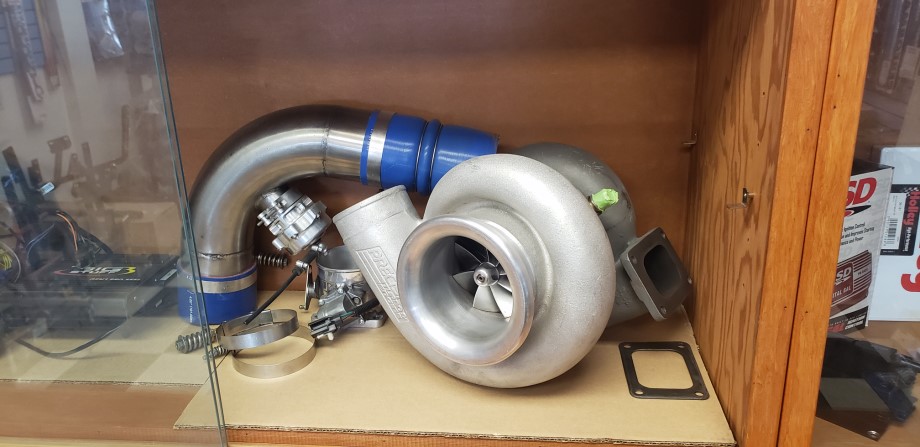

Precision Billet wheel 118mm 1.5 A/R Exhaust housing ceramic coated ball bearing
Tial blow off valve, with intake elbow from turbo & silicone connectors
Accufab 90mm TB with provision for IAC, and mount for Mopar throttle cable
Vortech Mondo intercooler, re-cored with Bell air / water core with larger inlets for better flow
Indy intake custom modified to bolt on Mondo intercooler with injector bungs & rails Ported to max wedge size intake ports on victor heads (can still bolt on to any heads)
Aeromotive EFI return style regulator with all fittings to rails.
Stainless custom built 1 ¾ primaries to 3 collector headers coated with titanium coating from top gun.
Stainless 2.5 coated crossover pipe with stainless flex bellow
HKS 50mm wastegate and turbonetics newgen wastegate both with 5 lbs springs (best start for minimum boost when using boost controller)
5 downpipe ceramic coated split to dual 3.5 downpipes Dual 3.5 pipes coated to clamp with bullet mufflers exiting before the tire (some scrapes from street driving)
Includes all vacuum plumbing from intake to wastegates / bov so all that is needed to add boost controller.
Everything is designed to fit an A body with an Alterkation front end, was originally built with a stock K member so will fit both.

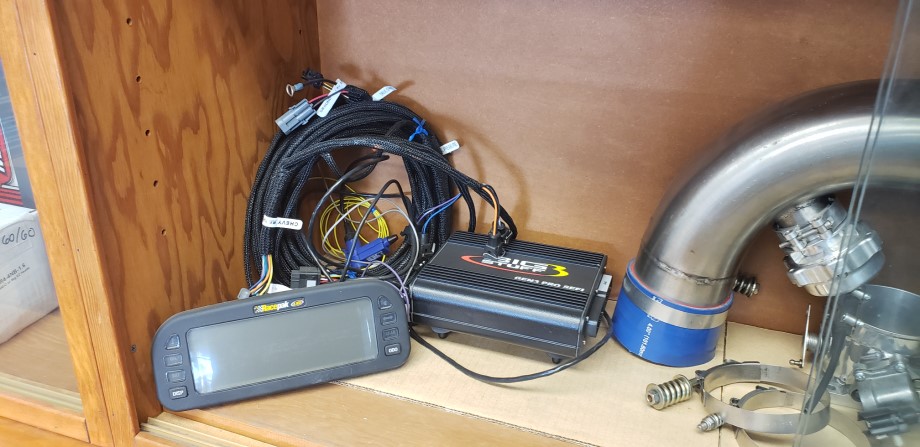

Big Stuff 3 ECU with DAI and DAE along with V – Net upgrades, DAE harness
Race Pak UDX Street rod dash
Big Stuff 3 V-Net adapter
Bosch wideband for BS3 in downpipe, coolant sensor, TPS on throttle body and air intake temp sensor in intake manifold
